Operating, Installation and Safety Manual
Released English manual for PRO ONE and PRO WALL, covering S and M configurations, installation, safe use, inspection, maintenance and service information.
Download manualPUBLIC PRODUCT DOCUMENTATION
Manuals and safety information.
Safety and installation information is available publicly. A serial number is not required to read the manual, review installation requirements or report a safety concern.
01 — DOCUMENTATION
Product information before, during and after installation.

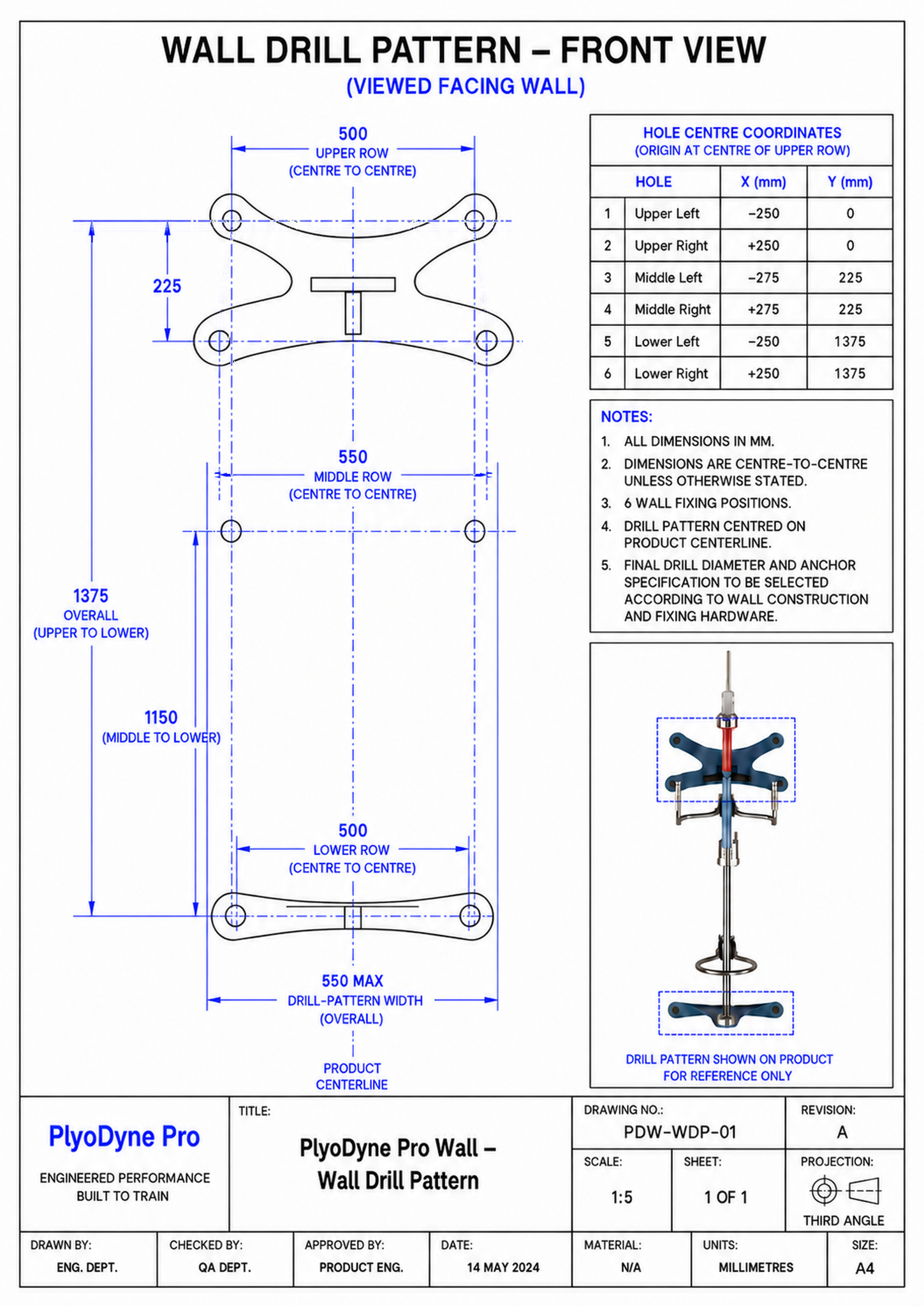

PRO WALL technical drill pattern
Dimensioned drawing showing all six wall-fixing centres, centre-to-centre distances, overall mounting-frame dimensions and installation notes.
Accessible dimensions and hole-centre coordinates
Revision A · Drawing PDW-WDP-01 · 14 May 2024. Front view, viewed facing the wall. All dimensions are millimetres. The coordinate origin is the centre of the upper row; X is measured from the product centreline and Y is measured downwards.
| Hole | Position | X (mm) | Y (mm) |
|---|---|---|---|
| 1 | Upper left | −250 | 0 |
| 2 | Upper right | +250 | 0 |
| 3 | Middle left | −275 | 225 |
| 4 | Middle right | +275 | 225 |
| 5 | Lower left | −250 | 1375 |
| 6 | Lower right | +250 | 1375 |
- Upper-row and lower-row centres are 500 mm apart; middle-row centres are 550 mm apart.
- Upper to middle row: 225 mm. Middle to lower row: 1150 mm. Upper to lower row overall: 1375 mm.
- Maximum overall drill-pattern width: 550 mm, centred on the product centreline.
- Use all six wall-fixing positions. Select the final drill diameter and anchor specification for the actual wall construction and fixing hardware.
- Measure every position from the stated dimensions and verify the complete pattern before drilling. Do not scale the drawing or use it as a drilling template.
PlyoDyne® PRO brochure
Product overview covering the movement principle, PRO ONE and PRO WALL, S and M configurations, specifications and installation considerations.
Download brochureInspection and service records
Printable online forms for delivery, installation, commissioning, periodic inspection, maintenance, incidents, replacement parts, relocation, ownership transfer and withdrawal from service.
Open printable records02 — SAFETY ESSENTIALS
Read these points before use.
Keep the complete shaft path clear, especially behind the user where approaching persons may not be visible.
Use and store the equipment indoors under normal room conditions. Protect it from water, condensation, direct heat and prolonged sunlight.
PRO ONE requires a stable, level floor. PRO WALL requires a suitable load-bearing wall and installation by a competent installer using all six fixing positions.
Make adjustments and weight changes only while the handle is stationary and fully secured in the Passive Safety Holder.
The maximum removable weight is the complete supplied set of 4.975 kg. Use only approved PlyoDyne® weights.
Do not lubricate the shaft, handle, keyway, clamps or dry-running components. Only the intended flexible-joint ball bearing may be lubricated when required.
Start at low load and speed. Establish one-handed movement control before introducing two-handed, high-speed or high-load training.
PlyoDyne® PRO is professional movement-training equipment and must not be used as children’s play equipment.
03 — SERVICE & SUPPORT
Public safety access. Product-specific support.
Anyone may report a safety concern or request general support. A serial number helps identify the exact product version but must not prevent urgent contact.
- Technical support and product issues
- Safety incidents or unusual equipment behaviour
- Replacement parts and version compatibility
- Ownership transfer and current-owner registration
- Warranty and service-history questions
